Applications:
Tungsten Carbide Seal Ring are widely used in petroleum, chemical and other fields of mechanical seals. It's an essential seal material.

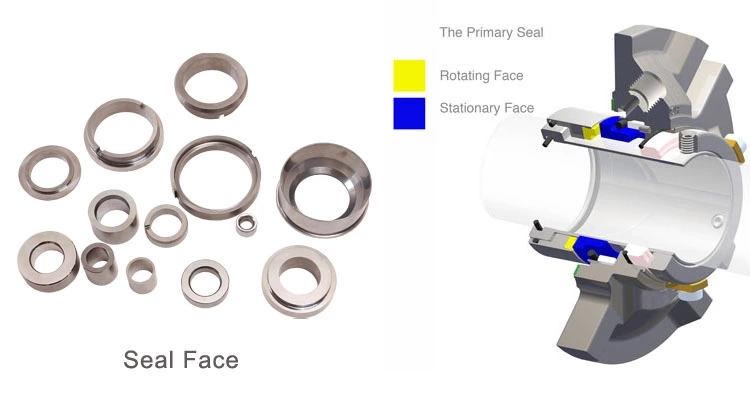

? The tungsten carbide seal ring can be divided into both of the rotating seal ring and static seal ring, and constitutes mechanical seal together with the spring,rubber seal ring and steel jacket.
? It's mainly used for waste water pump, water discharge pump for the mines, centrifugal pump, slag slurry pump and slurry pump in the adverse working conditions of high speed rotating,sand flush abrasion and corrosion.
? The seal ring is installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Product Features:

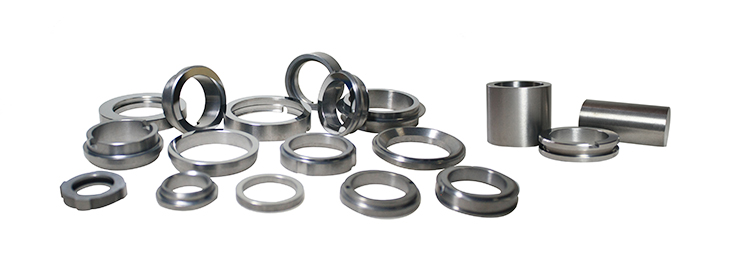

? The precision seal ring is made of high quality materials by an advanced process with several patented technologies
? The seal ring has a very complicated shapes, high accuracy, stable mechanic properties
? It has much higher wear and corrosion resistance properties, and a service life of more than twenty thousand hours in the normal case

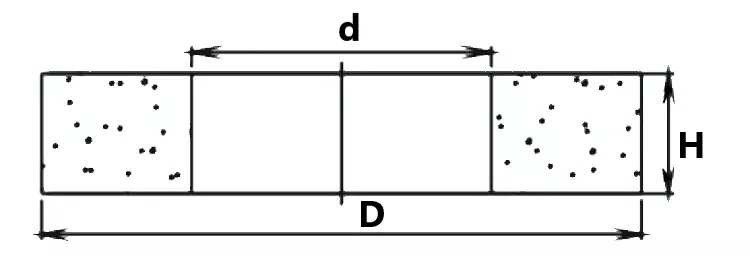

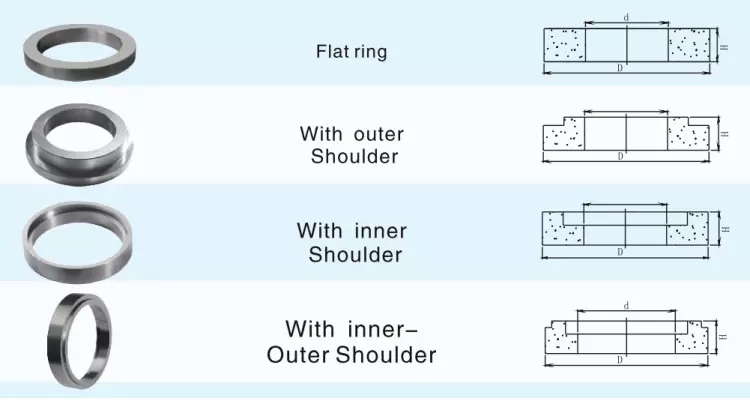

Basic dimension:
Tungsten Carbide Material Grade Specification:
Grade
Main Chemical Component (%)
Hardness (≥HRA)
Density (g/cm3)
T.R.S (≥N/mm2)
WC
Co
Ni
Tic
Other
YWN6
94
\
6
\
\
89
14.5-14.9
1500
YWN8
92
\
8
\
\
88
14.4-14.8
1650
YWN10
90
\
10
\
\
87
14.5-14.9
2100
YG6
94
6
\
\
\
89.5
14.7-15.1
1550
YG8
92
8
\
\
\
89
14.6-14.9
1850
YG13
87
13
\
\
\
88
13.9-14.2
2400
YG15
85
15
\
\
\
87
13.9-14.2
2500
A30
88
2
8
1
1
89
14.0-14.5
1700
A10
78
2
10
8
2
89
12.0-12.5
1450
